Description

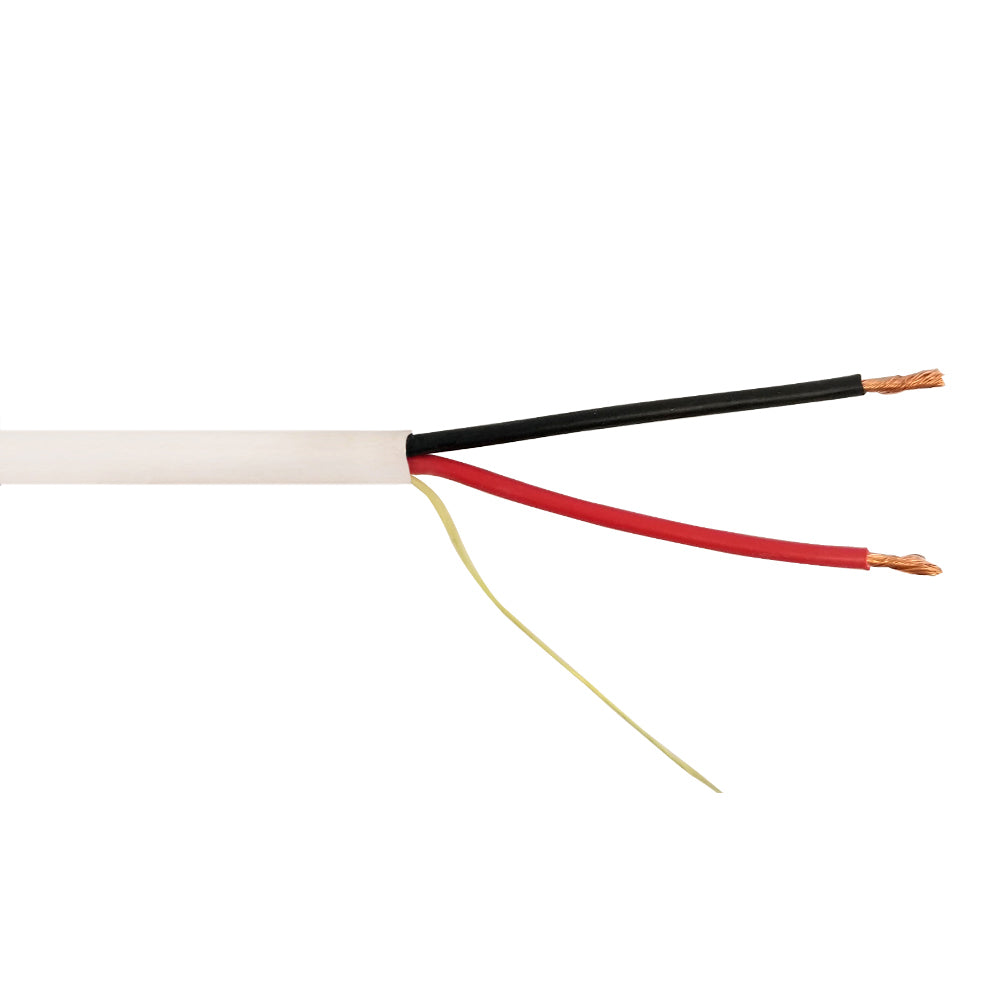

This bulk plenum rated speaker cable is made from multi-stranded bare copper cable to capture all highs & lows for optimum audio performance. It is typically run in plenum air spaces and used to connect speakers to amplifiers.
| Physical Characteristics | |
|---|---|
| Cable Length | 500 foot [152.4m] |
| Color | Black / White |
| Cable Diameter | 5.1 mm |
| Number of Conductors | 2C (Black/Red) |
| Wire Gauge | 14AWG |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMP [Plenum Rated] |
| Diameter over Dielectric |
0.0866 ±0.004 inches Nom. (2.2±0.10mm) |
| Nominal Jacket Thickness | 0.018 inches [0.46mm] |
| Minimum Spot | 0.014 inches [0.36mm] |
| DCR Conductor | 2.63 Ohms/1000 FT 8.62 Ohms/Km (Nom) |
| Ripcord | DuPont Kevlar® |
| Cable Shielding | None |
| Temperature Rating | -20℃ ~ +75℃ |
| Approvals | |
| c(UL)us |
Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 15.43 lbs |
