Overview

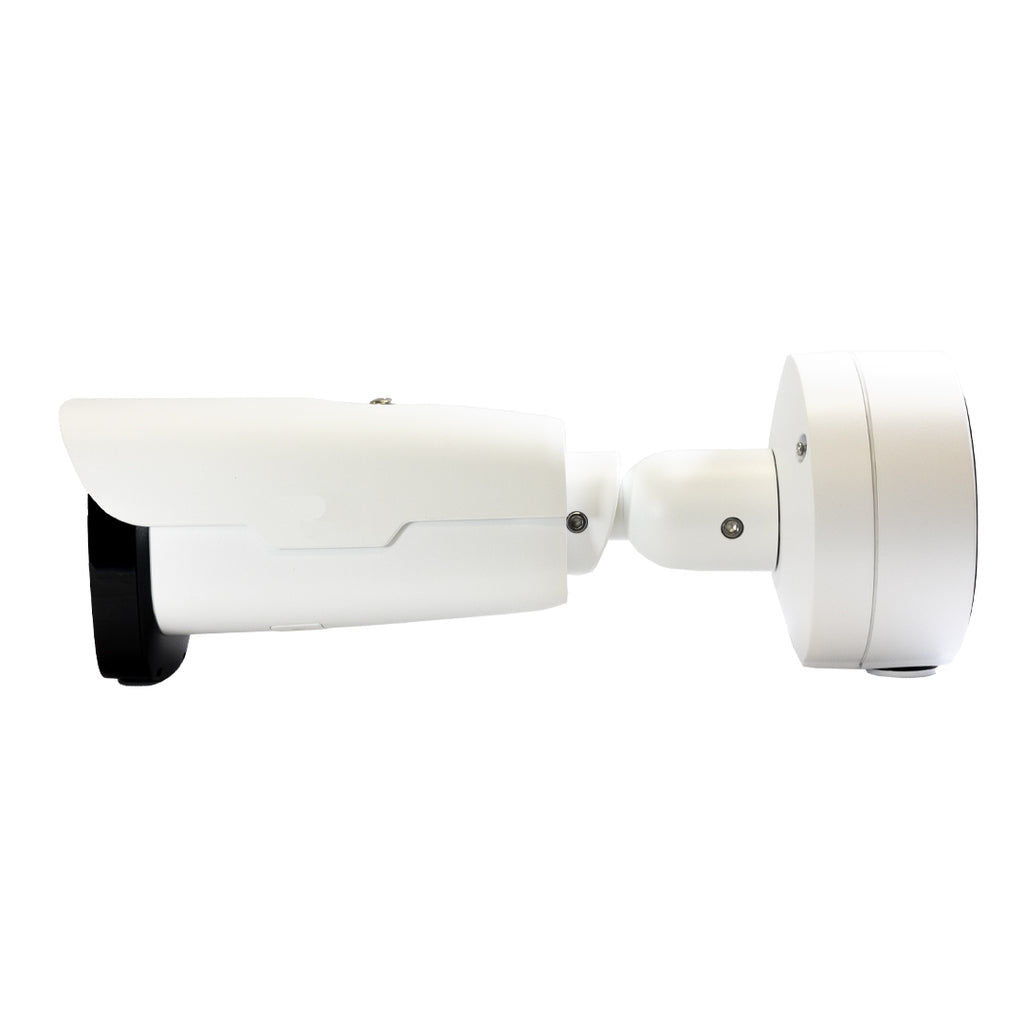

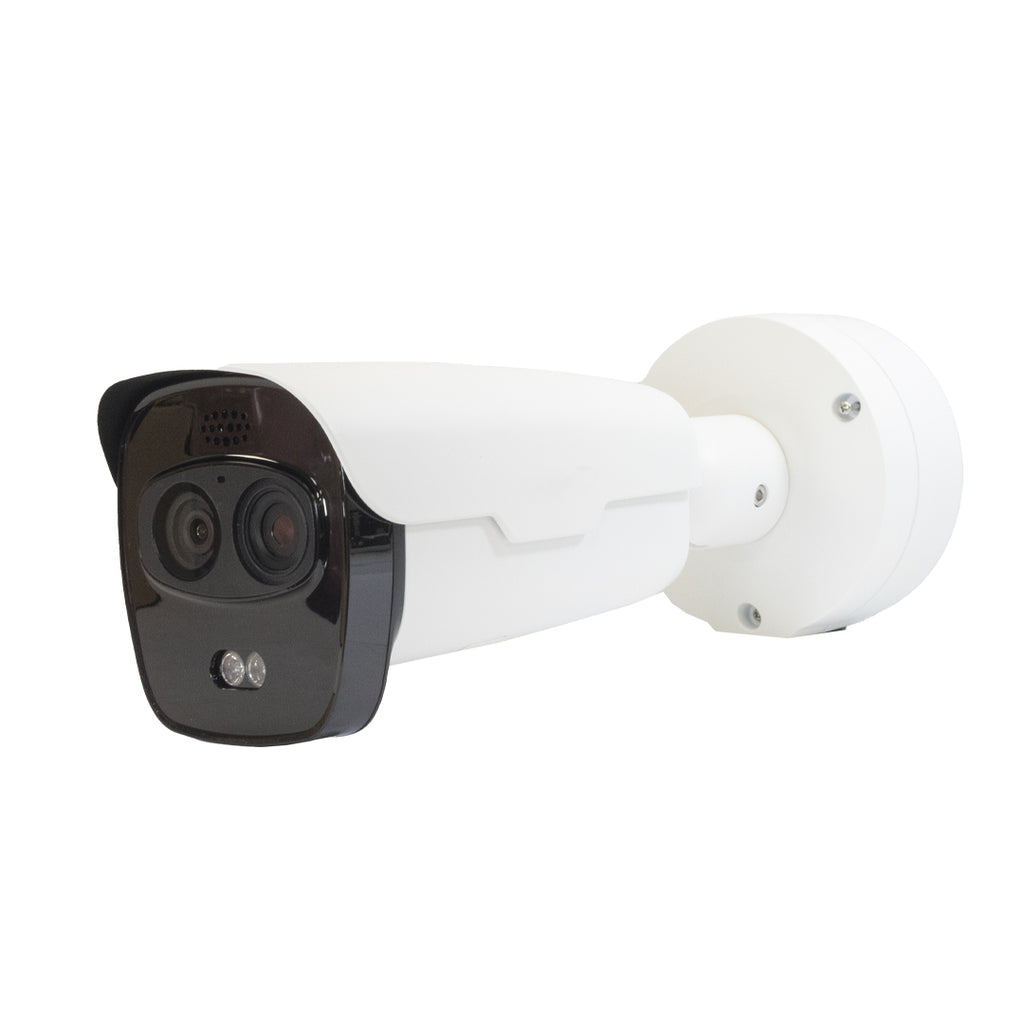

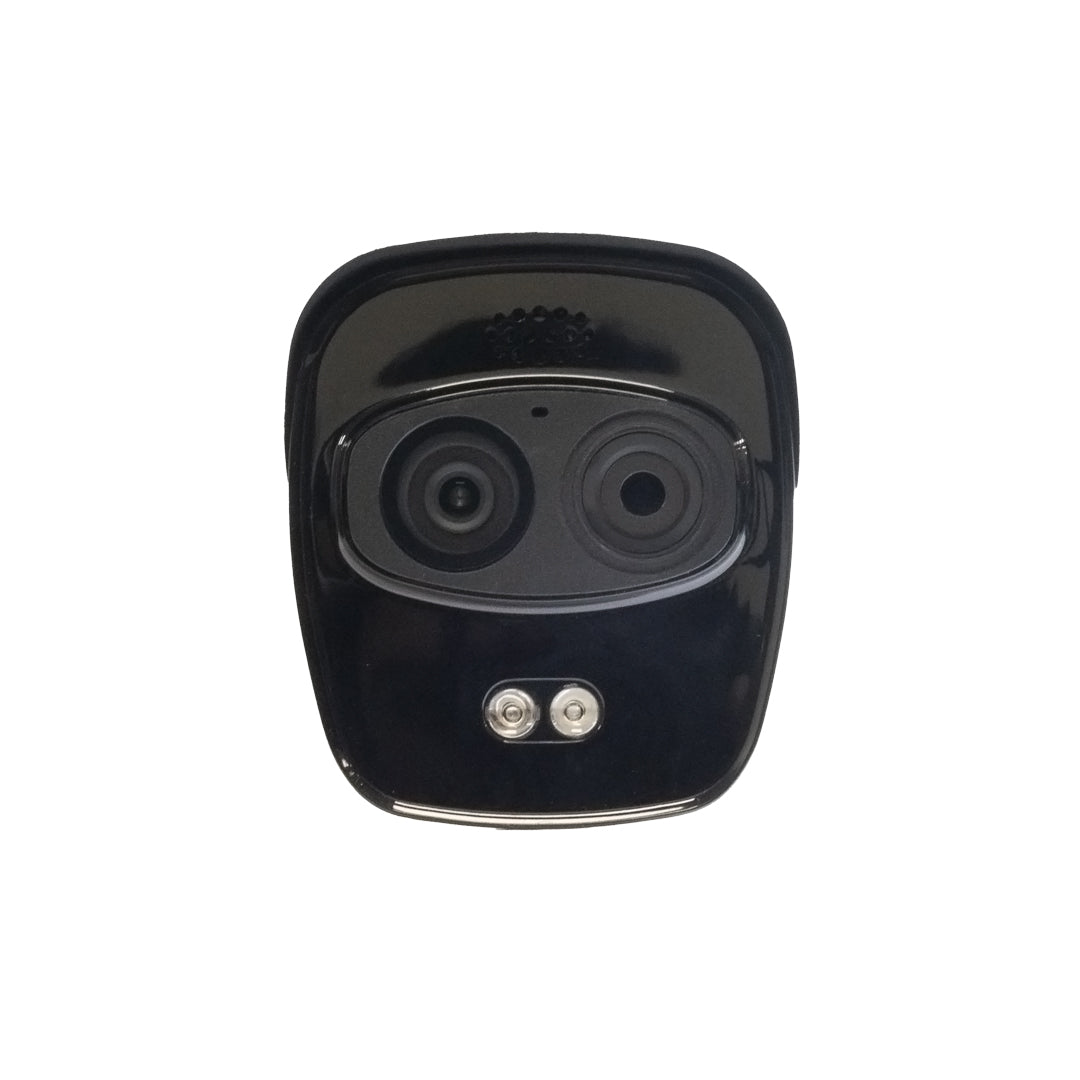

This 4MP thermal bullet camera provides sharp, high definition images in daylight or nighttime settings. This camera has a focal length of 4.0 mm fixed which delivers 57.0°~42.0° field of view. Its maximum resolution is 1280x720 at 30 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. It has 98 feet of IR range using an IR cut filter and IR LEDs.
 |
Features
|
Sample Images
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
| Camera | |
|---|---|
| Sensor type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Original Resolution | 256*192 |
| Field of View(H*V) | 57.0°~42.0° |
| Video Resolution | 720P(1280*720), Max 30fps |
| Response waveband | 8~14ÎŒm |
| Pixel size | 12ÎŒm |
| IFOV | 3.75mrad |
| NETD | â€55mk @f/1.0 @25°C |
| Lens(focal length) | 3.2mm@F1.1 |
| Palette | Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce |
| Detection Distance | Vehicle: 316m (target size 4mx1.4m); human: 126m (target size 1.8mx0.5m) |
| Recognition Distance | Vehicle: 79m (target size: 4mx1.4m); human: 32m (target size: 1.8mx0.5m) |
| Identification Distance | Vehicle: 45m (target size: 4mx1.4m); human: 18m (target size: 1.8mx0.5m) |
| Optical Module | |
| Sensor |
1/1.8", 4.0 megapixel, progressive scan, CMOS |
| Lens | 4mm@F1.6 |
| Iris | Fixed Aperture |
| Iris |
Fixed aperture |
| DORI Distance |
Lens: 4mm |
| Field of View(H*V) |
89.9°~49.1° |
| Video Resolution | 4MP(2688*1520), Max 30fps |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Min. Illumination |
Colour:0.001lux (F1.6, AGC ON) B/W: 0.0005lux(F1.6,AGC ON) 0 lux with IR |
| WDR | 120dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 50m (164 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| BLC | Supported |
|
Smart(Thermal Module) |
|
| Fire Detection |
Support the detection of fire point in the environment and up to 10 fire points can be detected |
| Smoking Detection | Support the detection of smoking in the environment and link to alarm |
| Temperature detection |
Support area detection, and link to alarm, the temperature value can be added to the alarm picture Support cold&hot point tracking, timely and clearly shows the abnormal point Up to 12 rules can be set Temperature range:  -20°C ~+150°C Temperature accuracy: Max (±8°C/±8%) |
| Smart intrusion prevention |
Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area, Leave Area Support motor vehicle and pedestrian detection capture and plan arming |
| Smart (Optical Module ) | |
| Exception Detection |
Object left behind detection, Object removed detection, Scene Change Detection |
| Smart intrusion prevention |
Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area, Leave Area Support motor vehicle, non-motor vehicle and pedestrian detection capture and plan arming |
| Video | |
| Video Compression | Ultra265, H.265, H.264, MJPEG |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas per scene |
| Video Stream | Triple streams |
| Events | |
| Audio and light alarm | Support audio and light warning function, with red and blue warning lights built in |
| Basic Detection | optical module :Motion detection, Audio detection, Tampering alarm thermal module : Audio detection |
| General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Two-Way Audio | Supported, Built in mic and speaker |
| Sampling Rate | 8KHz |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| Interface | |
| Audio I/O |
1/1 |
| Alarm I/O | 2/2 |
| Serial Port | 1 RS485 |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
|
Network |
|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, |
| Compatible Integration | Compatible Integration |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| General | |
| Power |
DC12V(±25%), PoE(IEEE802.3af) Power consumption: Max 12W Support reverse polarity protection, Overvoltage and overcurrent protection , Input short circuit protection |
| Dimensions (Ă x H) |
Ί354mm x 104mm x 116mm(Ί13.9â x 4.1â x 4.6â) |
| Weight |
1.85kg(4.08lb) |
| Temperature detection  working environment | -10°C ~+50°C(-14°F ~ 122°F) , Humidity: â€95% RH (non-condensing) |
| Working Environment/Storage Environment |
-40â~70â(-40°F ~ 158°F), Humidity: â€95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Vandal Resistant | N/A |
