Description

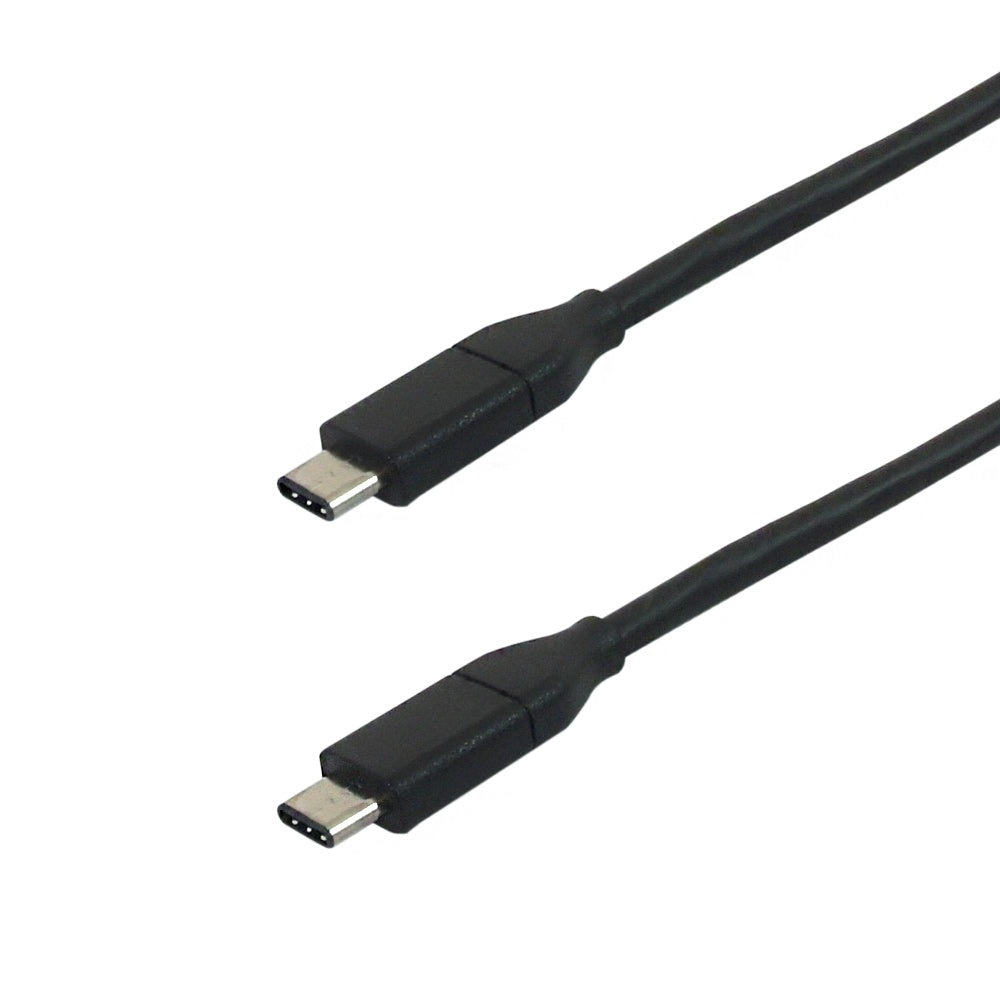

This USB 3.1 cable consists of a USB type-C male on both ends. It is capable of transferring data at 5Gbps and is typically used to connect USB 3.1 peripherals as well as charge and sync USB Type-C mobile devices. USB 3.1 is backwards compatible with previous generation USB devices and is also compatible with Thunderbolt 3 ports.
| Physical Characteristics | |
|---|---|
| Cable Length | 10 foot |
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 4.5 mm |
| Wire Gauge | 30AWG (data) / 24AWG (power) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Strain Relief | Molded |
| Connector(s) | |

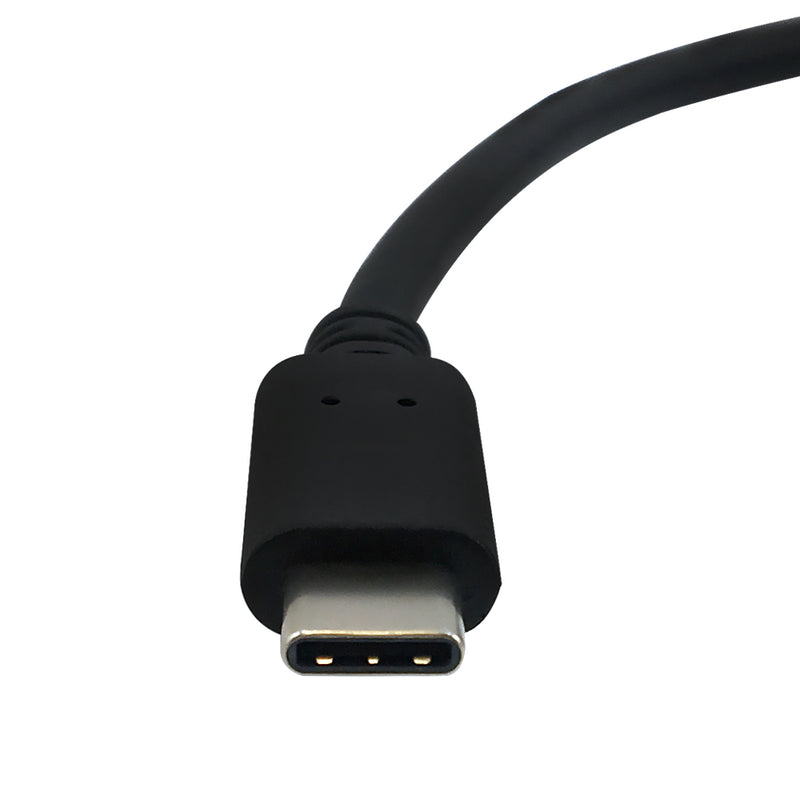

| Connector A | 9-pin USB 3.1 Type-C SuperSpeed Male |
| Connector B | 9-pin USB 3.1 Type-C SuperSpeed Male |
| Performance | |
| Rating | USB 3.1 SuperSpeed Gen 1 |
| Speed | 5 Gbps |
| Compatibility | Backwards Compatible Previous Generation USB |
| Power | Max 60W |
| Amperage | Max 3A |
| Support | DisplayPort, 4-Channel Audio, Thunderbolt 3, PCI Express |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.17 lbs |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
